Industrial palletizing system that organizes, stacks, and arranges loads up to 180 kg with a maximum reach of 3.2 m. It automates packaging and logistics, accelerating throughput and reducing human effort.
4-DOF Palletizing
Three 4-axis models for palletizing or depalletizing loads of 12 kg, 30 kg, and 180 kg. The arm extends up to 3,200 mm, optimizing floor space and improving logistics productivity.
| Size(Standing) | 1098mm×450mm×645mm |
| Size(Lying Prone) | 880mm×460mm×330mm |
| Weight | 60kg Total weight (battery included) |
| Battery Performance | Battery capacity 45Ah(2250Wh)，voltage 58V |
| Endurance Ability | Battery life 4-6h Walking without load > 5h, and the mileage > 20km Walking with 20kg load > 4h, and the mileage> 15km |
| Wheeled Foot | Optional |
| Load(Standing) | Max. 120kg |
| Load(Walking) | > 40kg |
| Continuous Stair Climbing | Stairs of 20~25cm |
| Climbing Ability | Climb up and down stairs of 40cm in forward direction |
| Operating Temperature | -20℃ ~ 55℃ |
| Climbing Angle | > 45° |
| Running Speed | > 6m/s [1] |
| Ditch Jumping Width | 0.5~1.2m |
| Max Jump Distance | > 1.6m |
| Ingress Protection | IP67 |
| Control and Perception | Standard Configuration: Intel Core i5 (Platform Function), Intel Core i7 (User Development) Optional Configuration: Intel Core i7 and Jetson Orin NX (Maximum up to 3 devices) |
| Sensing Sensor | 3D LiDAR ×1 + Depth camera ×2 + Optical camera ×2 (Varies with different configurations) |
| External Interface | 1000M-Base-Ethernet×4 USB3.0×4 12V×4 5V×1 24V×4 BAT×1 |

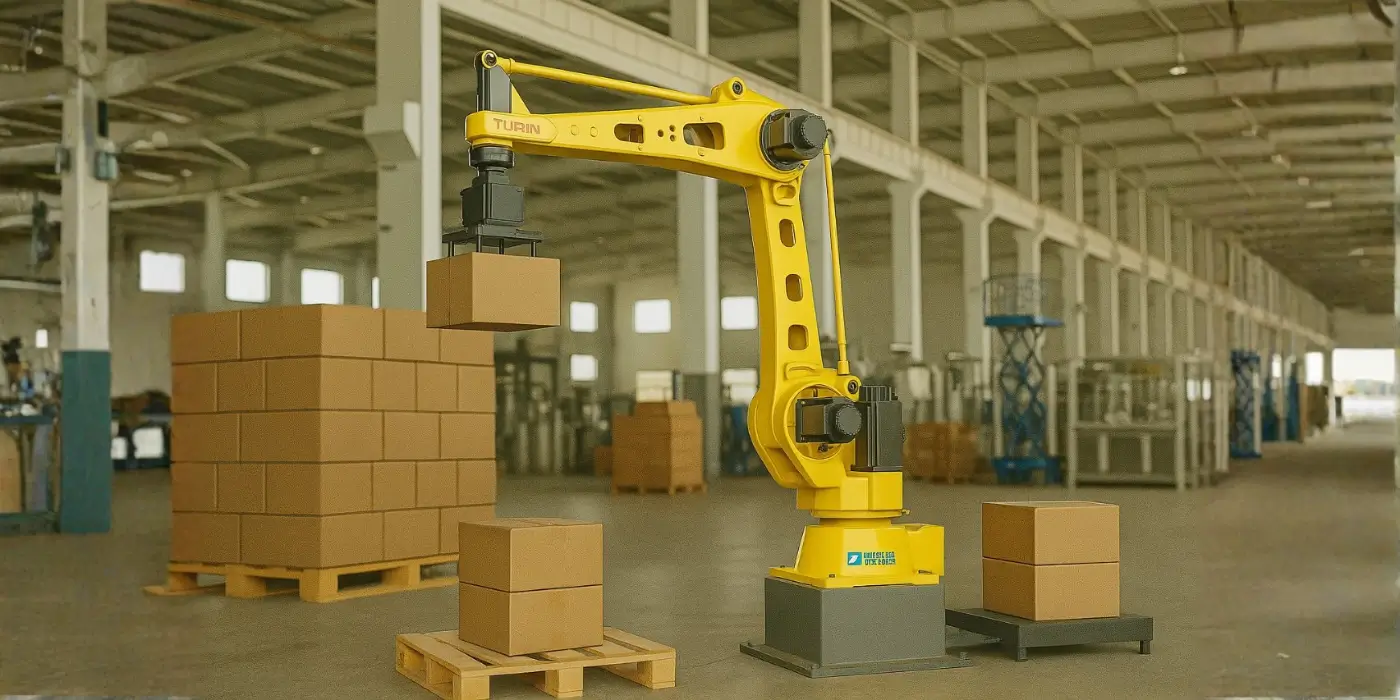

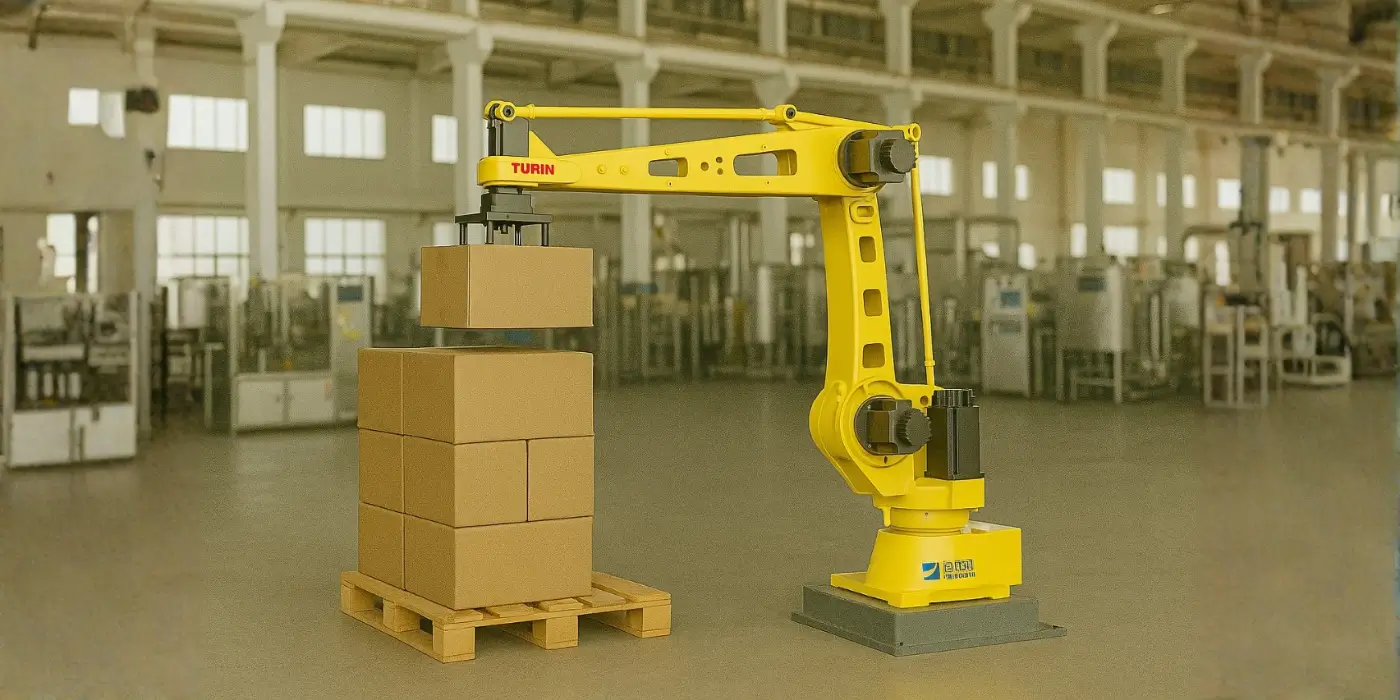

High-speed palletizing

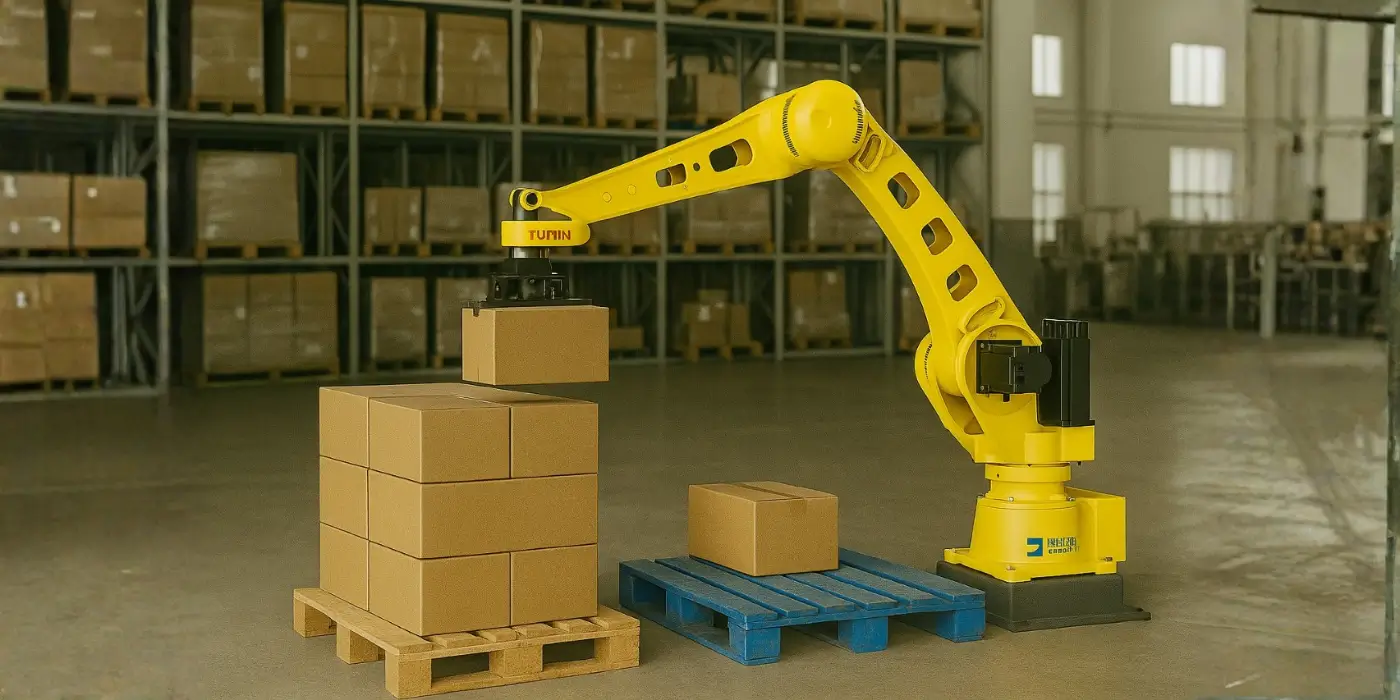

Rapid depalletizing
12–180 kg payload
3.2 m reach
Reduced human effort
24/7 logistics throughput
